INTRODUCING
EinScan H Series
The Next Level EinScan Experience
3D Scanning with Hybrid Light & Full Color
Best In The Business
As a professional for Reverse Engineering, Mako GmbH recommends the EinScan 3D Scanners from 3DXpress
Installation Help
The Mako GmbH team will help you every step of the way with your new 3D Scanners. We will call you and advise you free of charge on installing your SHINING 3D EinScan H and HX scanner.
Portable, high accuracy, multi-functional 3D Scanners
EinScan H
Hybrid LED & Infrared Light Source Handheld Color 3D Scanner

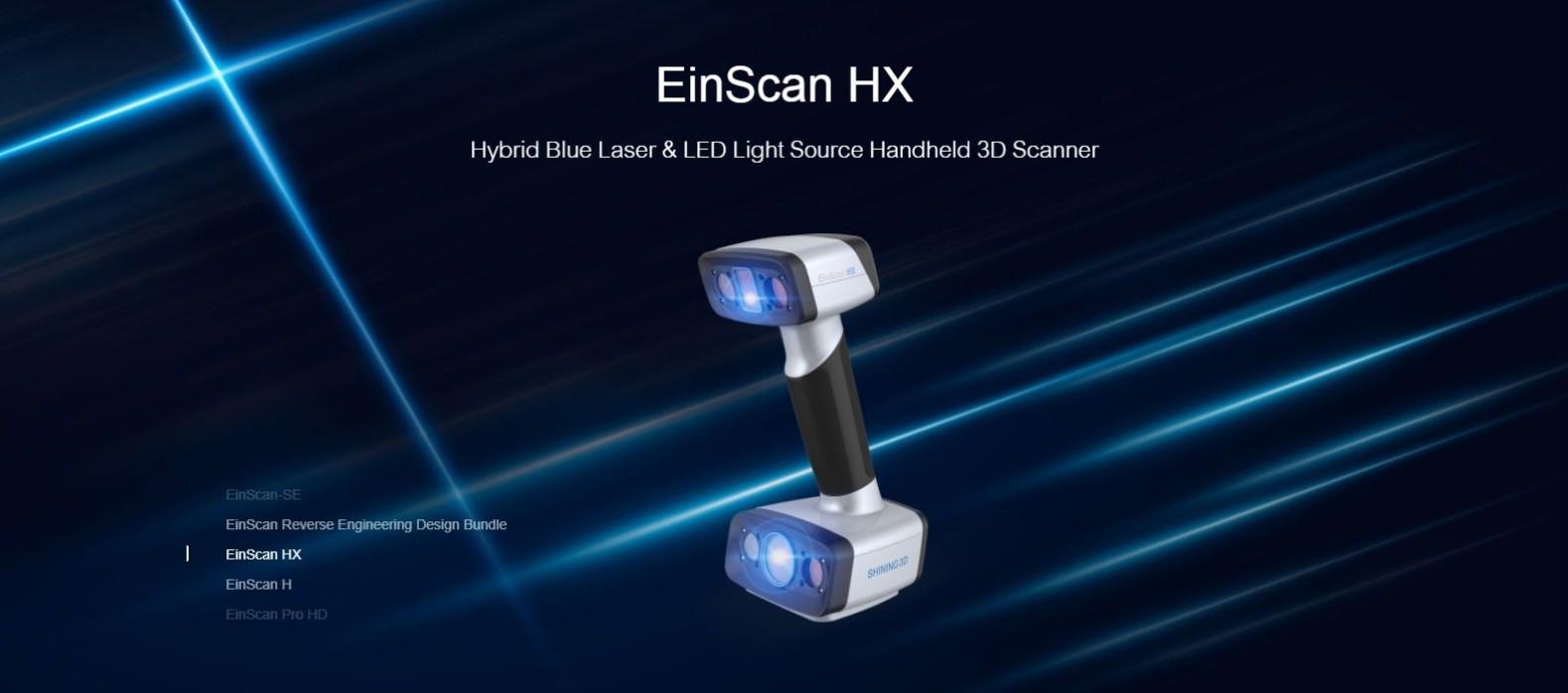

EinScan HX
Hybrid Blue Laser & LED Light Source Handheld 3D Scanner
EinScan Pro HD
Improves the Efficiency of High-quality 3D Modeling
EinScan Pro
Portable and Light-weight Handheld Scanner
EinScan Pro+
Fast, Dynamic, Precise and Expandable 3D Scanner
EinScan Pro 2X
The truly portable and versatile handheld 3D scanner for high-precision results
EinScan Pro 2X Plus
Professional 3D Digitizing Solution for Versatile Applications in an Easy Way
EinScan SP
Make high resolution 3D modeling accessible to professional users
Medit Solutionix C500
Most user-friendly 3D industrial Scanner
Hybrid Blue Laser & LED Light Source Handheld 3D Scanners
Hybrid Blue Laser & LED Light
Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.
Infrared & Structured Light Hybrid Light Source
Hybrid structure light source technology integrating LED structured light and invisible infrared light into one device and adding advanced smart presetting in different scan modes allows 3D scanning in a broad range of applications and promotes the popularization of portable 3D scanning technology.
Portable & Easy Operation
EinScan HX is plug and play with user friendly software, which is easy to operate, no matter you are newbie or with professional experience in 3D scanning. The portability and flexibility use of EinScan HX has been considered to its ergonomic design for a more efficient and comfortable scanning experience.
Invisible Light 3D Scanning Experience
The new face scanning mode adopts invisible infrared light
Enabling a safe and comfortable scanning process.
The Era of Scanning with Hair Acquisition
The invisible infrared light source provides a reliable solution to the problem of acquiring dark-coloured objects and enables an easy acquisition of human hair.
High Efficiency
Benefit from our strong and long-term carrier relationships that offer you flexible, reliable and secure ocean freight solutions.
We Offer All the Scanners at Affordable Prices
EinScan H
Hybrid LED & Infrared Light Source
4.599,00€
- Accuracy - Up to 0.05mm
- Resolution - 0.25-3mm
- Speed - 20 FPS 1,200,000 points/s
- Suitable scan size - 30cm-300cm
- Color Texture - Built-in color camera
- Light source - LED, Infrared ray
EinScan HX
Hybrid Blue Laser & LED Light Source
12.000,00€
- Accuracy - Up to 0.04mm
- Resolution - 0.05-3mm
- Speed - 20 FPS 1,200,000 points/s
- Suitable scan size - 30cm-300cm
- Color Texture - Rapid scan, Built-in color camera
- Light source - LED, Laser
EinScan Pro HD
Impressive high resolution for fine details
7.199,00€
- Accuracy - Up to 0.045mm
- Resolution - 0.2-3mm
- Speed - 10 FPS 3,00,000 points/s
- Suitable scan size - 3cm-300cm
- Color Texture - Support with Color Pack
- Light source - LED
How We Can Help?
As a professional for Reverse Engineering, Mako GmbH recommends the 3D scanners from 3DXpress. We provide up to 2 hours of data processing / reverse engineering for Free!
Installation Help
The Mako GmbH team will help you every step of the way with your new 3D Scanners. We will call you and advise you free of charge on installing your 3DXpress scanners.
Service
Mako GmbH converts the scanned point clouds into optimal surfaces. Through the services of us you can process your product geometry without expensive software or employee training and in the highest quality in any CAD system.
Free help
We offer two hours of data processing free of charge for all users who need optimized (surface-recirculated) parametric volume data for CAD systems or high-quality 3D prints after scanning.
3D scanning, data processing, reverse engineering, 3D printing and measurement technology: everything from a single source
Features
Fast Scanning
Scan speed up to 1,200,000 points/s and large scan FOV of 420*440 mm ensure fast 3D scanning of large size objects. The optimzied alignment algorithm enables efficient alignment despite small movements of the scanned object or person.
Reliable Results
The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring. Minimum point distance 0.05 mm Accuracy up to 0.04 mm under Laser Scan
Less Limitations of Scan Objects
With new lighting projection hardware and software algorithm, EinScan Pro HD is capable to scan a wider range of objects of dark or black color and casting metal surface, enriching the capability for 3D scanning of materials.
Portable & Easy Operation
The software is intuitive and user-friendly. Easy operation for professional users and beginners alike. Easy to own, easy to use.
Full-color Reproduction
The built-in color camera supports full color texture capturing and tracking by texture.
Fine Details
Impressive high resolution reaches 0.25 mm, EinScan H captures full geometry of objects such as artwork or furniture with fine details . The high accuracy of scanned data up to 0.05 mm and volumetric accuracy 0.1mm/m improves the precision of 3D modeling in a dense points cloud or polygon meshes.
FAQ
Following are the questions frequently asked by the users
The EinScan exports mesh data (STL.OBJ. PLY. etc…), those are composed of a large number of triangle (polygons). Traditional CAD software reads parasolid files (IGES, STEP/STP etc…), these files are composed of a set of shapes that are mathematically defined. Therefore, for CAD software a mesh is interpreted as a very large number of planes. Often the direct conversion from mesh to CAD format is limited to small files.
The transformation from mesh to CAD data is called Reverse Engineering. The mesh is imported into the CAD interface and is used as a visual or matching reference for the construction of the CAD model.
Solid Edge SHINING 3D edition is bundled with EinScan for this purpose. SHINING 3D has developed partnerships with multiple software companies providing Reverse Engineering solutions among them, Solid Edge, Rhino & mesh2surface, DesignX, and Geomagic for Solidworks.
Hairs are difficult to scan as they reflect light in random directions, you can try to apply dry shampoo or mat color spray on the hair to turn them mat.
Or do the post processing with a mesh editor. You can find some library or draw hair using 3Dmax, Maya, Blender, Z brush. These kinds of software require advanced skills.
Classic：
15 frames / sec
Direct scan with selected resolution
Good for: small parts, middle resolution scan.
Lightning：
30 frames / sec
Scan with 1mm resolution
Interpolation to selected resolution when end scan
Good for: large part with low resolution scan
Lightning + Refine：
30 frames / sec
Scan with 1mm resolution
Parallel capture of frame data
Refine to selected resolution after scan, by retopology, using the frame data
Good for: large part, allow recalculation of the resolution.
Once you are at the optimal working distance, increase the brightness, until some data is captured. However, with higher brightness settings, more noise is captured.
For a better result you can, prior to scanning, apply some spray on the surface:
Scan spray for metrology applications, is projecting an extremely thin layer, so the shape is not affected.
DIY solution: flour or baby powder can work too.
Scanning large objects can be challenging because of:
The numerical limit of the software,
The maximum distance in one direction is 4m. the size limit is 8000*point-distance. Therefore, you reduce the resolution to achieve singular large scan data
The cumulative error
The further you go the less accurate the data. Start from the middle of the object and follow a spider path towards the edges to reduce risk of tracking loss.
If you misalign, recovering tracking can take long as there may be multiple possibilities of matching areas. The use of markers is highly recommended for large parts.
The computer capacity
The bigger the object, the larger the file. To improve this, register the GMF and construct the large file as a puzzle of smaller scans with a 3rd party software.
EXScan Pro mesh editor offers:
Watertight or Unwatertight models
Simplification (decimate the mesh)
For Unwatertight: Fill holes respecting curvature, up to 100mm perimeter, and fill markers holes
Sharpen and Smooth option
Brightness and contrast of the texture
For more options on these or other features we recommend meshlab or meshmixer (both free software) or Geomagic Wrap.
